Besseling Connectors
Connectors with cable gland

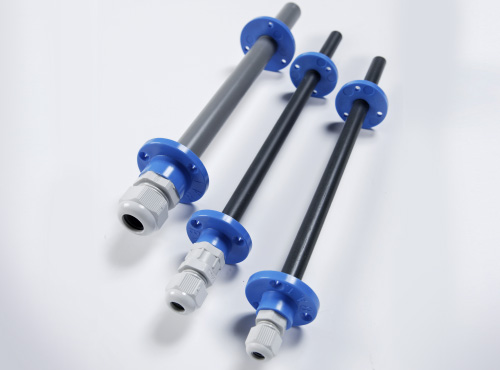

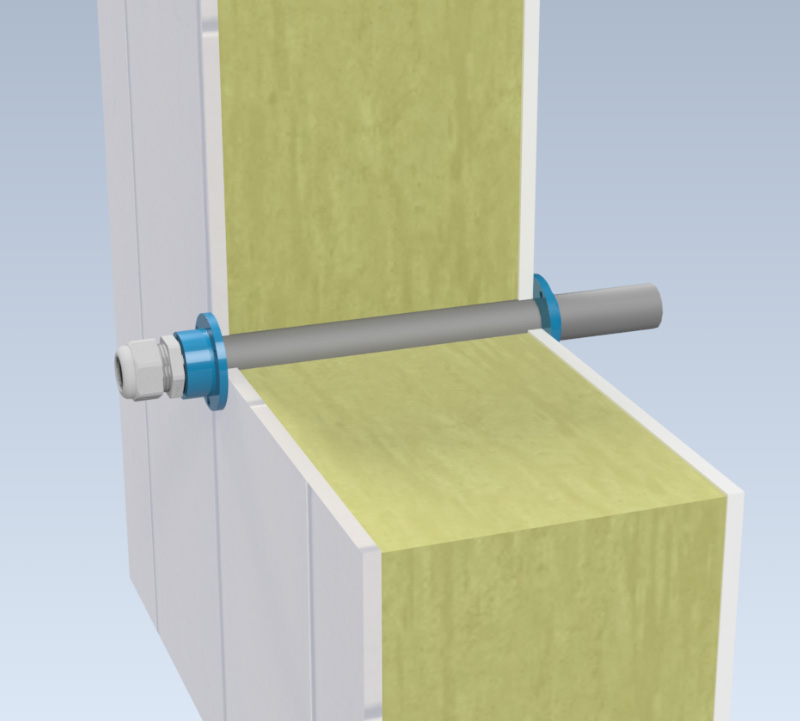

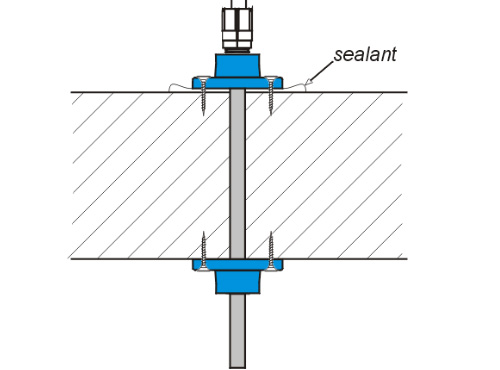

Cables for controlling equipment or sensors in a gas tight room can be led through the wall / ceiling via a connector with cable gland. This Besseling gas tight cable connector consists of a tube with flanges and an IPON cable gland that can be tightened. Standard length of the tube is 250 mm, however different lengths are available on request.

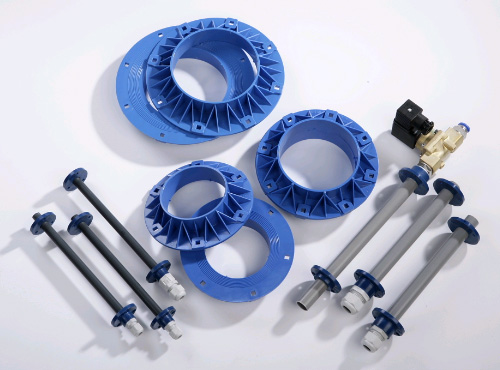

Gas tight connectors for cables and/or hoses:
| diameter | ||
| Gastight connection with cable gland | PG7 | 4 to 6 mm |
| Gastight connection with cable gland | PG9 | 5 to 8 mm |
| Gastight connection with cable gland | PG13.5 | 8 to 12 mm |
| Gastight connection with cable gland | PG16 | 9 to 14 mm |
| Gastight connection with cable gland | M32 | 13 to 21 mm |
| Gastight connection with cable gland | M40 | 16 to 24 mm |
> Click here for datasheet Request A Free Quote
